3D inspection

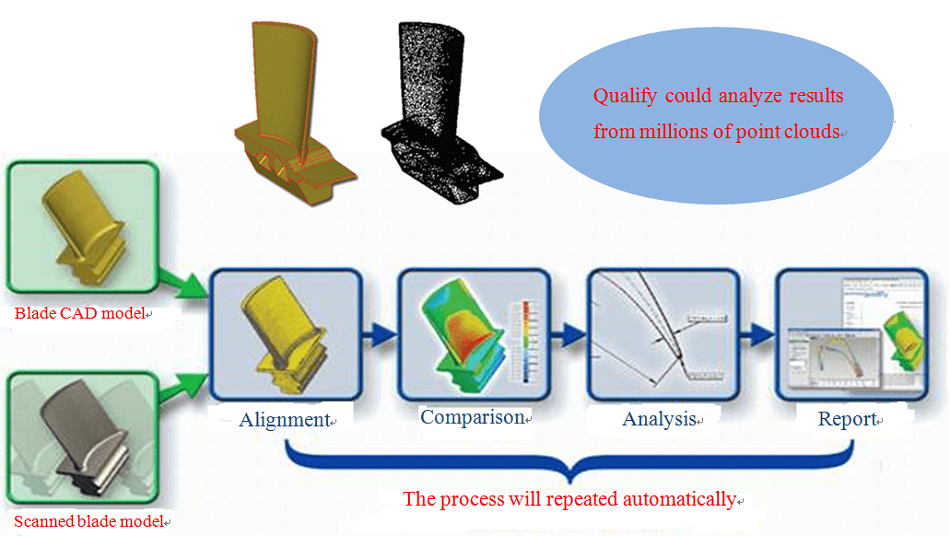

3D inspection process

三维检测英文1

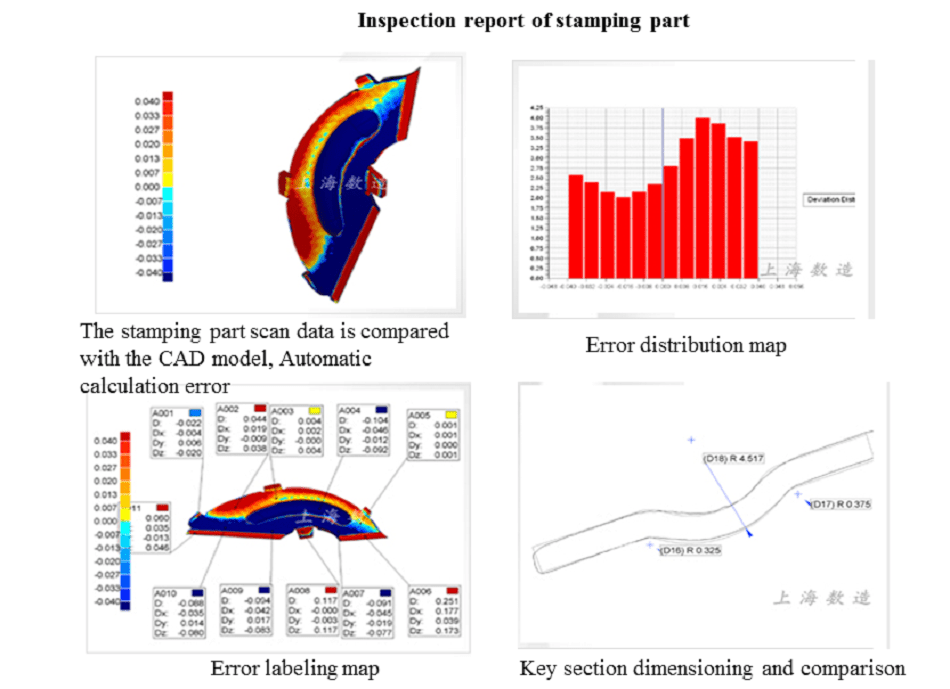

3D scanning inspection is a full-scale detection technology. The basic method is to perform partial or full-scale 3D scanning of the parts to be inspected, and compare the obtained 3D point cloud with the 3D digital model to generate a color error coded picture and an intuitive detection report. It is convenient, fast, and accepted by the manufacturing industry.

三维检测英文2

Case

三维检测英文3

 Question:

Inspection tools are costly and can’t adapt change of car structure.

Solution:

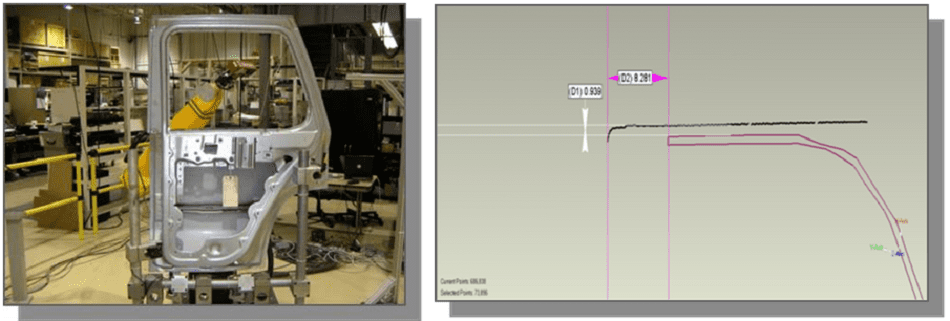

Programmable robot arm + scanner complete scan of the door and front and rear cover boundaries
Geomagic Qualify 3D inspection software automatically processes scanned data and outputs reports

Result:
Save millions of costs of  inspection tools.
5 minutes to complete testing and reporting.



Scanners recommended

Structured light 3D scanner

Handheld laser 3X/7X/SX
